AC to USB Adapter - ETG Series
Power your panel mount or portable ETG digital products with this AC adapter. The product has a five foot cable with strain relief and USB micro connection.
In stock
ETG
Calibrated

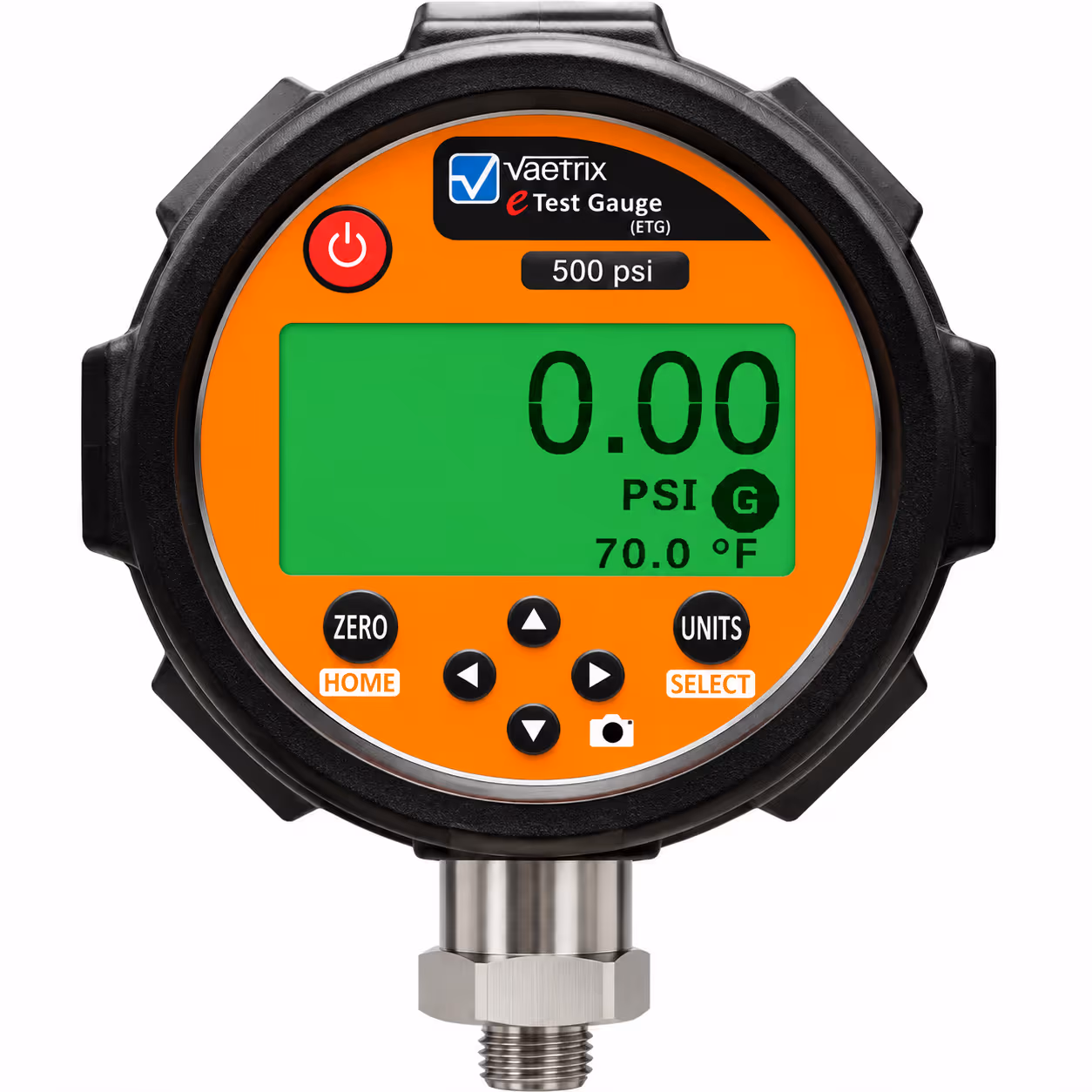

ETG Calibration Gauge
SKU:
$1,120.00Configured price · NIST cert included
Ships in 1-5 business days domestic, 3-5 international
Key specs
- Accuracy
- Pressure: ±0.05% Full Scale over -10°C to 50°C (14°F to 122°F)
- Temperature accuracy (optional)
- Temperature: ±1°F/°C over operating range
- Weight
- 1.4 lb / 0.64 kg
NIST traceable
ASME B40.7
Assembled in USA
4-year warranty
About this item
Choose your options and build the gauge for your application. Now with the ability to measure temperature. Add the Hydro Management Software to create full blown tests for ASME B31.3 and replace several analog gauges. Vaetrix ETG utilizes the latest digital technology to accurately solve pressure measurement applications. All MEMS pressure sensors are fully temperature compensated throughout the operating range. The easy to use interface and intuitive menu structure is the best in the industry. There are no encrypted symbols or abbreviations, just press the arrow keys to navigate the menu and select your choice.
Warranty
Backed with a 4 year warranty and unlimited customer support. We fully support our products right here in the USA. If you have any application or technical questions give us a call.
In the box
- Quick Start Guide
- NIST Certificate with Data
- Batteries
- 4 year warranty
Documents & Downloads
Specifications
Identity
- SKU
- VTX-ETG-CG
- Product line
- ETG
Measurement
- Accuracy
- Pressure: ±0.05% Full Scale over -10°C to 50°C (14°F to 122°F)
- Temperature accuracy (optional)
- Temperature: ±1°F/°C over operating range
Physical
- Weight
- 1.4 lb / 0.64 kg
Compliance
- Calibration certificate
- Included
Works with
Rover USB Extender with custom cable
Monitor your ETG or HTG product remotely from up to 200 Feet. Choose your cable length and we custom build it with the connections so you can live stream the data to any Windows computer with Vaetrix PC Live.
In stock
ETG Hanging Strap with Carabiners
Slide the hanging clamp around the boot and attach the carabiners to support your gauge plus a whole lot more! Strap is three foot in length and is adjustable.
In stock
USB to Micro B Cable, 6', Right Angle
Shielded USB 2.0 to Micro B Cable used with all Vaetrix ETG units to download data from the unit to a PC. Cable length is 6 feet and includes right angle connector which plugs directly into the back of the gauge.
In stock
Vaetrix PC Live Software
See live data and graphs from any ETG or HTG product via USB. Add the Rover USB extender and get up to 275 feet! Create full blown hydrostatic test reports with cover pages, notes, sign-off page, alarms, and much more.
In stock
