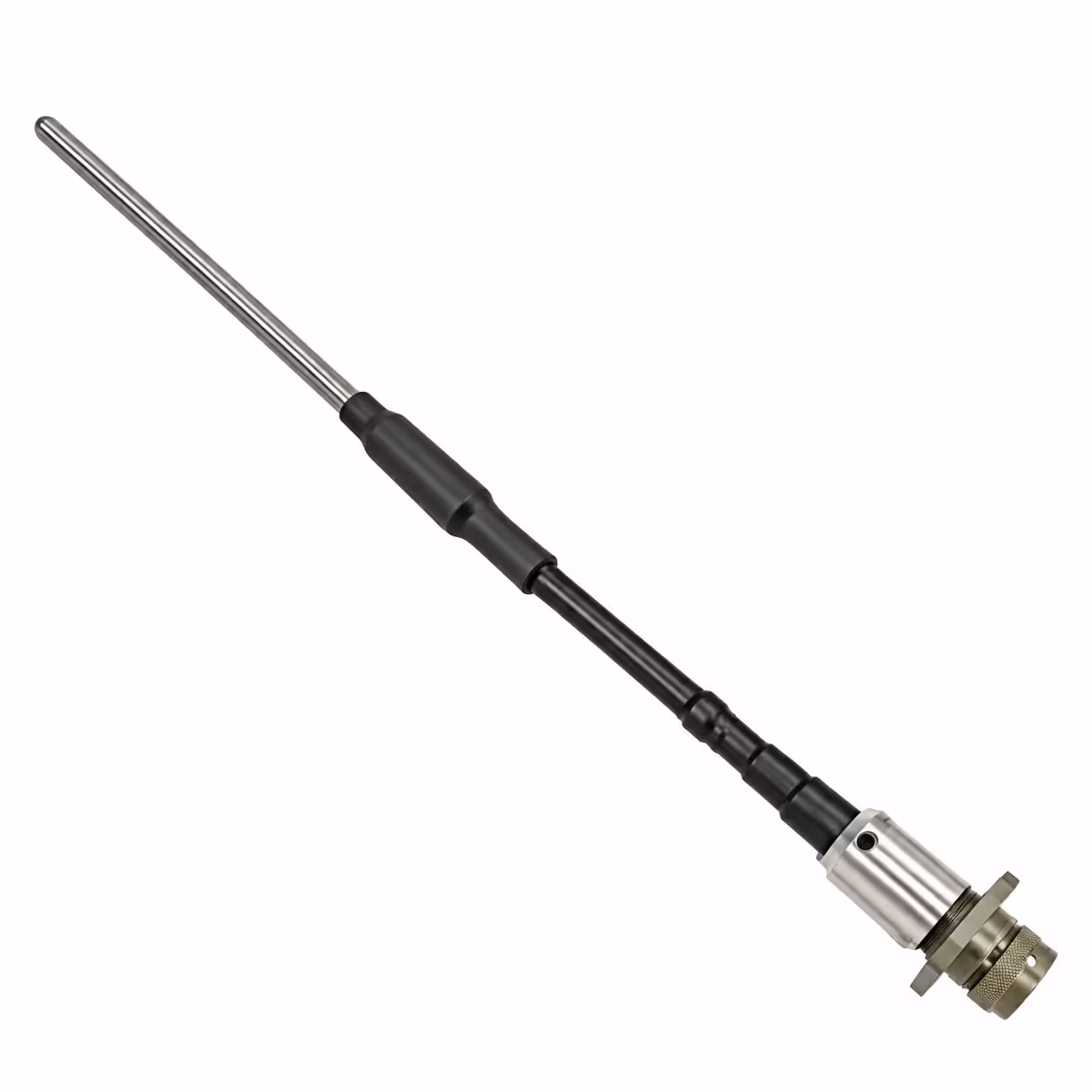

VX Probe
4-Wire Platinum RTD Probe with Amphenol Connector. PVC jacked cable (1/4" O.D.) with armor shield to prevent damage from pinching or being ran over in the field. Probe is available in 6" or 12" length and 0.25" in diameter.
In stock
HTP
New in 2025Calibrated
HTP2 Hydro Temperature Probe
SKU:
$368.00Configured price · NIST cert included
Ships in 1-5 business days domestic, 3-5 international
Key specs
- Weight
- 0.6 lb / 0.27 kg
NIST traceable
ASME B40.7
Assembled in USA
4-year warranty
About this item

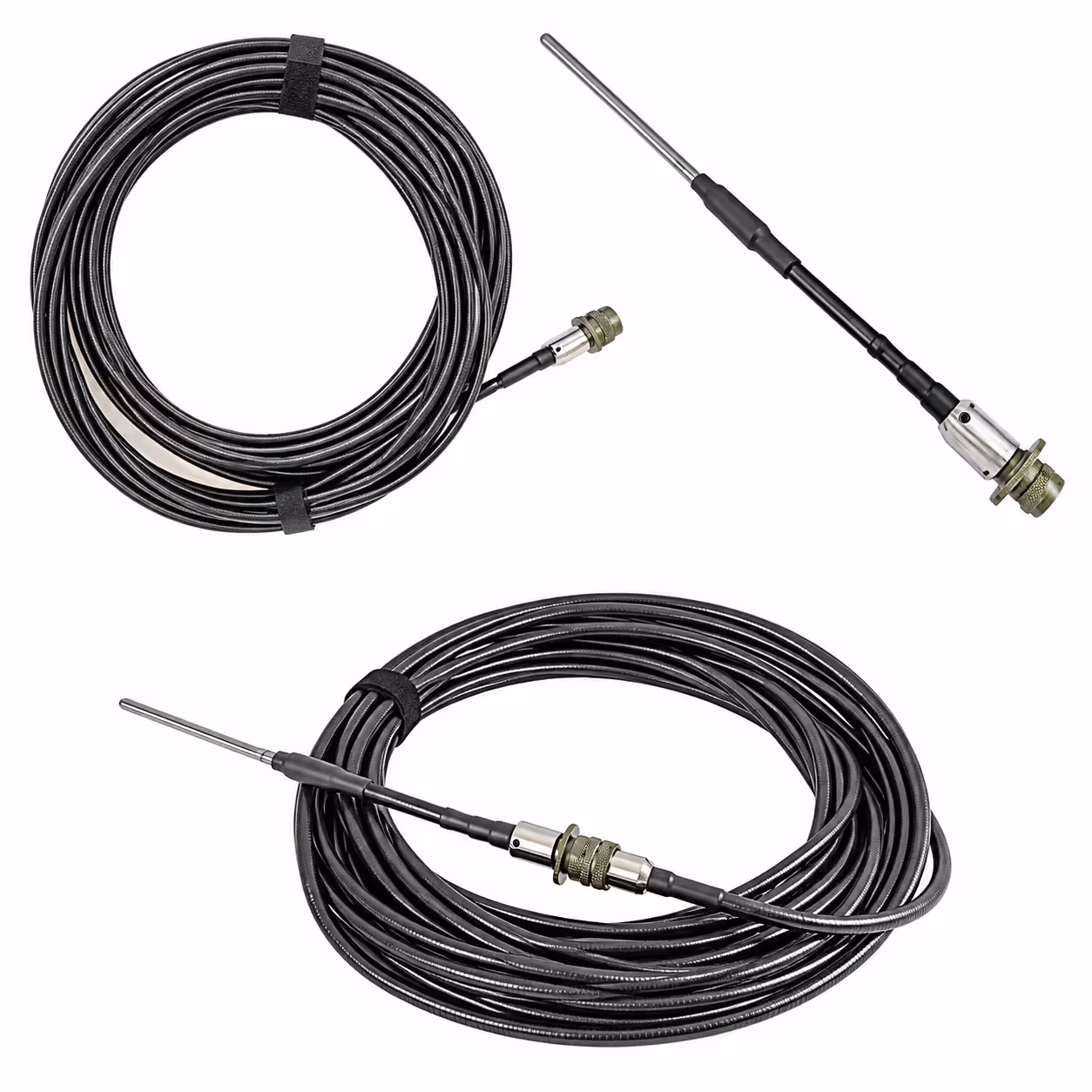

The new Vaetrix HTP2 takes temperature measurement and data recording to whole new level. Add ground and pipe temperature measurement to as many points on the pipeline as needed. Start the log function, set data interval, and the temperature is recorded straight in the non-volatile memory. No need to run long cables and worry about faulty connections. Data is seamlessly brought in directly to the Hydro Data Management Software, it's that easy. No Excel or software required. As with all Vaetrix products the NIST certificate with data and 4 year warranty is included. Direct replacement for the HTP-12-RTD and HTP-72-FLEX. Add your RTD Extension Cable VZ-CABLE and VX-RTD-PROBE to build your custom temperature solution. Temperature measurement based on a 4 Wire Platinum 100 Ohm Probe - 385 Class A.
Documents & Downloads
Specifications
Identity
- SKU
- VTX-HTP2
- Product line
- HTP
Physical
- Weight
- 0.6 lb / 0.27 kg
Compliance
- Calibration certificate
- Included
