HTP2 Hydro Temperature Probe
The new Vaetrix HTP2 takes temperature measurement and data recording to whole new level. Add ground and pipe temperature measurement to as many points on the pipeline as needed.
In stock
VX
Used with DCR2, HTP2Calibrated
VX Probe
SKU:
$431.00Configured price · NIST cert included
Ships in 1-5 business days domestic, 3-5 international
Key specs
- Weight
- 0.5 lb / 0.23 kg
NIST traceable
ASME B40.7
Assembled in USA
4-year warranty
About this item

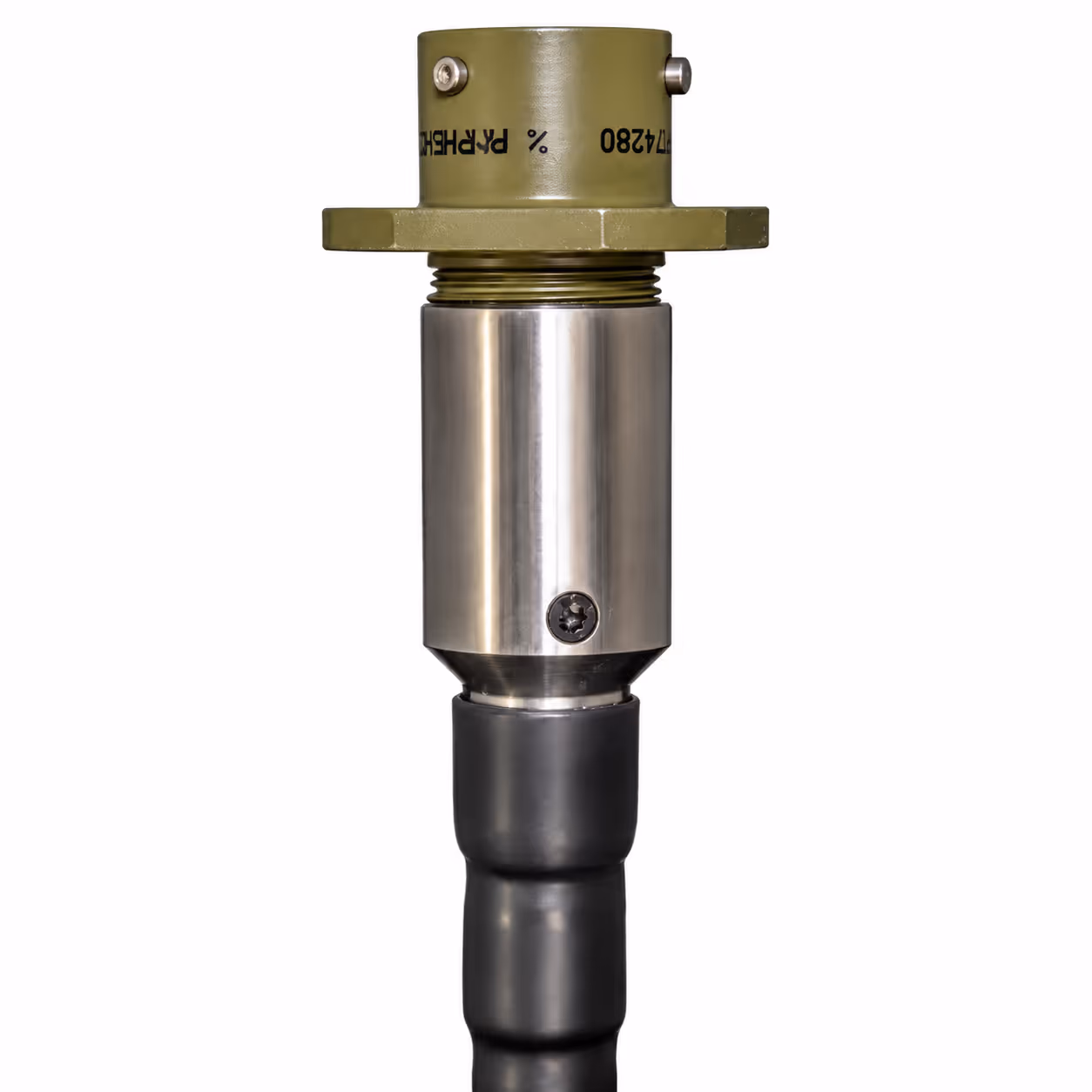

4-Wire Platinum RTD Probe with Amphenol Connector. PVC jacked cable (1/4" O.D.) with armor shield to prevent damage from pinching or being ran over in the field. Probe is available in 6" or 12" length and 0.25" in diameter. Please use thermowells to install RTD probes inside a pipe with live pressure to ensure safety. Swagelok Compression Fittings 1/2"NPT and teflon ferrules are available upon request. Please read the user manual before using all products. Every RTD is tested and reported on the product NIST Cert with Data that is traceable back to a primary temperature standard.
Documents & Downloads
Specifications
Identity
- SKU
- VTX-VX-PROBE
- Product line
- VX
Physical
- Weight
- 0.5 lb / 0.23 kg
Compliance
- Calibration certificate
- Included
