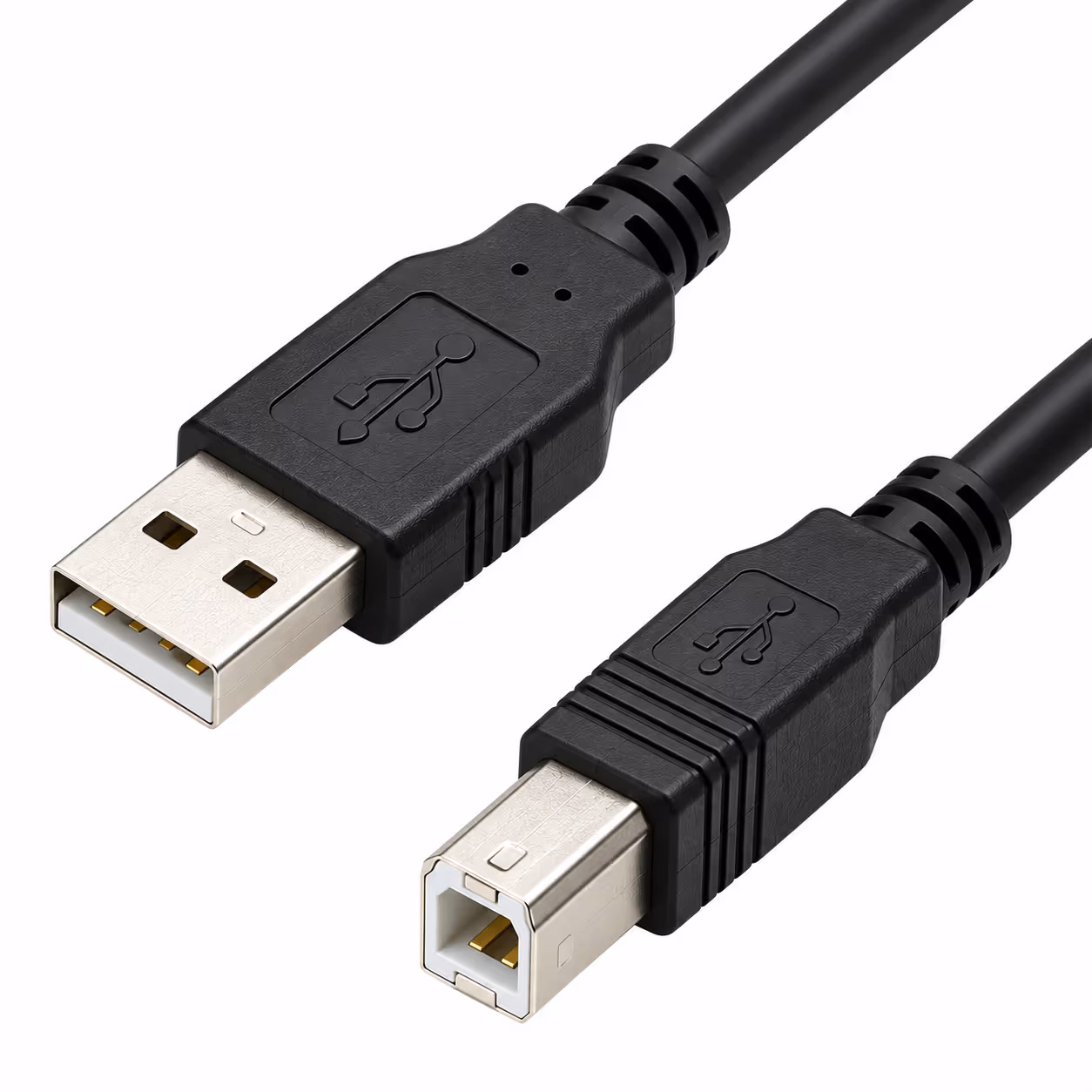

USB to Type A Cable, 6ft, Straight
Six foot straight USB to Type A printer-style cable for connecting Vaetrix instruments to a PC for data download and software use.
In stock
Cables

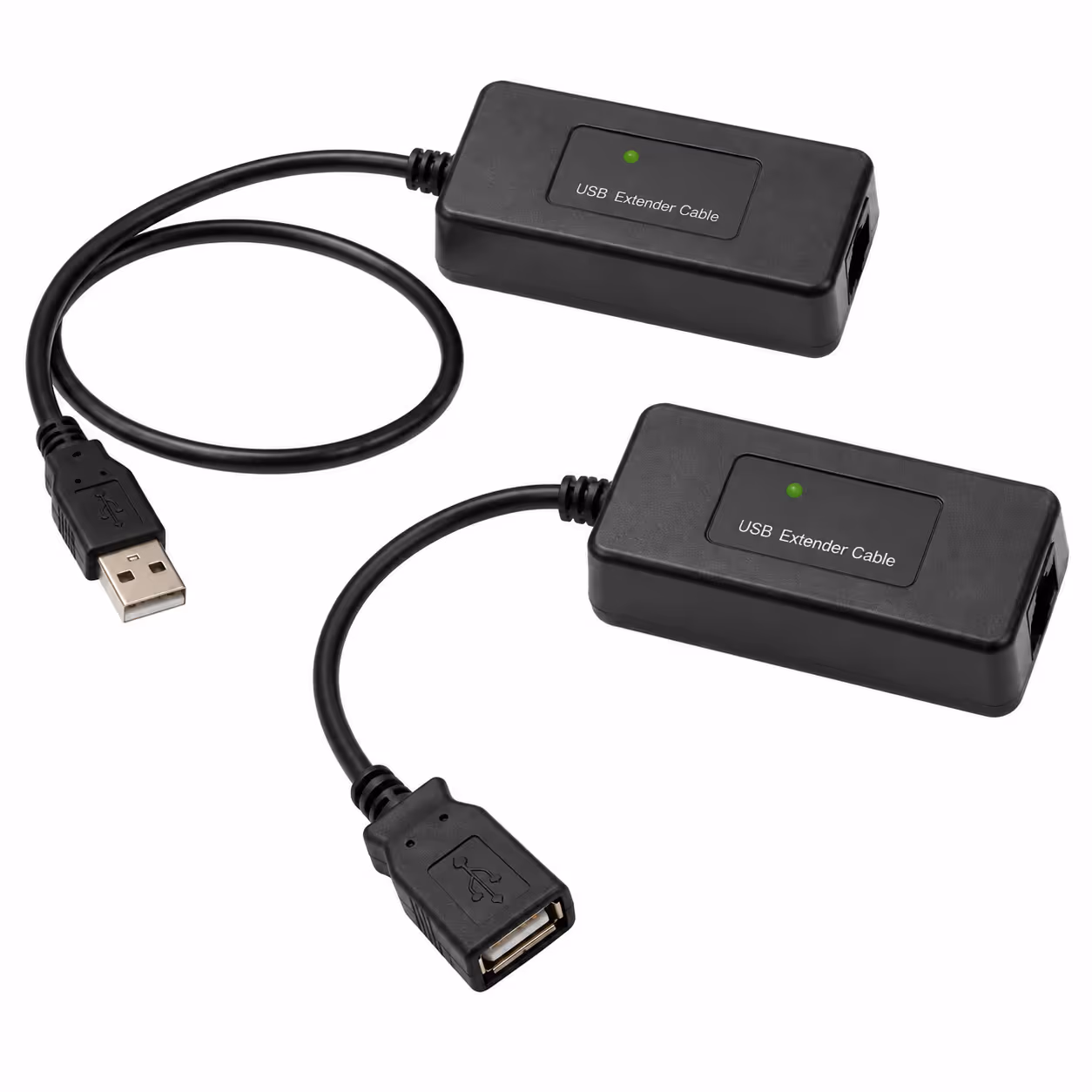

Rover USB Extender with custom cable
SKU:
$401.00Configured price
Ships in 1-5 business days domestic, 3-5 international
Key specs
- Weight
- 0.8 lb / 0.36 kg
NIST traceable
ASME B40.7
Assembled in USA
4-year warranty
About this item
Monitor your ETG or HTG product remotely from up to 200 Feet. Choose your cable length and we custom build it with the connections so you can live stream the data to any Windows computer with Vaetrix PC Live. Pricing is the same regardless of length. Performance Reach: Up to 60m (200 feet) Local Extender LEX unit USB Connector: 1 x USB Type A Plug LEX unit – Pig Tail Length: 18″ (45.7cm) LEX unit Link Connector: 1 x RJ45 Dimensions: 3.34″ x 1.57″ x 0.98″ (85mm x 40mm x 25mm) Remote Extender REX unit USB Connector: 1 x USB Type A Receptacle REX unit – Pig Tail Length: 6″ (15.2cm) REX unit Link Connector: 1 x RJ45 Maximum current available at REX: 400mA when LEX is supplied with 700mA Dimensions: 3.34″ x 1.57″ x 0.98″ (85mm x 40mm x 25mm) Environmental Operating Temperature: 32°F to 122°F (0°C to 50°C) IP40 Rated Certifications Emissions: FCC (Class A), CE (Class A) Immunity: CE Criteria A Environmental: RoHS2 (CE) Safety: CPSIA, Flammability V-1
Specifications
Identity
- SKU
- VTX-ROVER-USB-EXT
- Product line
- Cables
Physical
- Weight
- 0.8 lb / 0.36 kg
You may also need

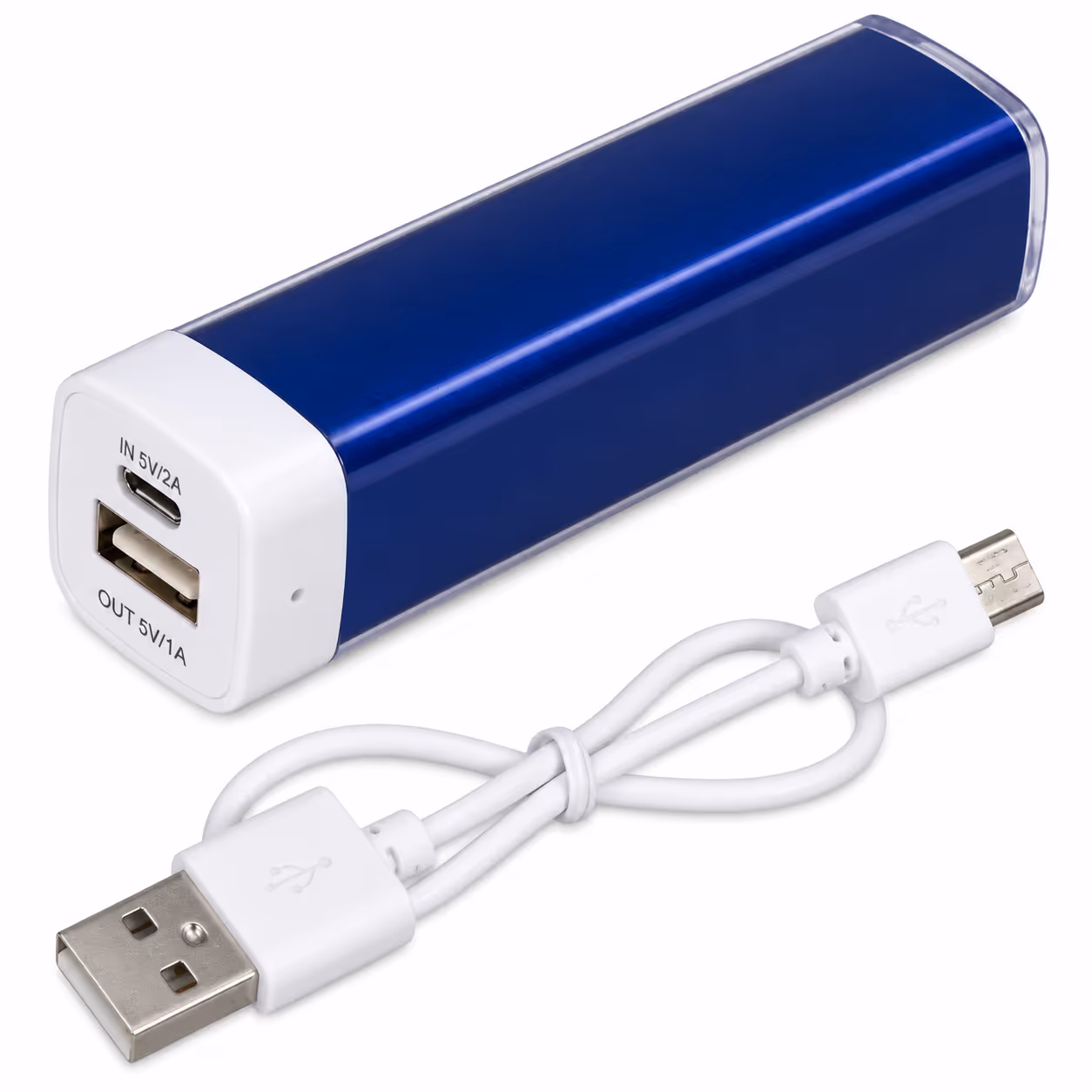

Lithium Ion Portable Power Bank
Vaetrix branded lithium ion power bank rated at 2200mA with UL Listing. Micro B DC 5V Input for charging and USB A port for Output. Includes 1' Cable - USB A to Micro B. Not approved for use with Intrinsically Safe rated products.
In stock

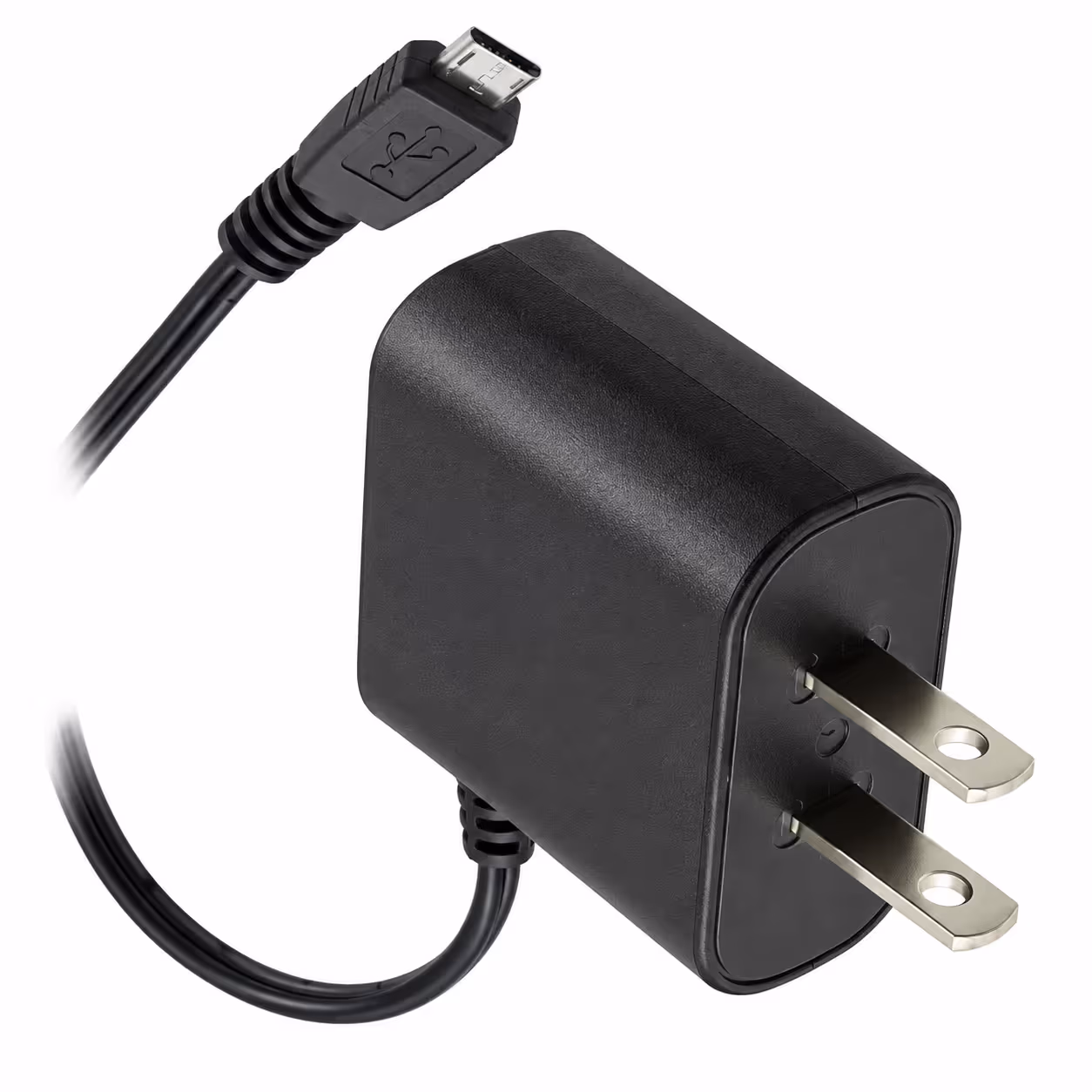

AC to USB Adapter - ETG Series
Power your panel mount or portable ETG digital products with this AC adapter. The product has a five foot cable with strain relief and USB micro connection.
In stock
ETG Hanging Strap with Carabiners
Slide the hanging clamp around the boot and attach the carabiners to support your gauge plus a whole lot more! Strap is three foot in length and is adjustable.
In stock
Works with
DCR2 Digital Chart Recorder
After working several mechanical contractors for two years we took the original Digital Chart Recorder (DCR) and made it even better! The new design includes gasketing for IP67 with lid closed and a panel mounted battery access.
In stock
Distribution Test Gauge (DTG2)
After working several gas distribution customers we took our standard panel mount gauge and mounted it in a small, rugged enclosure for those remote pressure monitoring or logging applications.
In stock

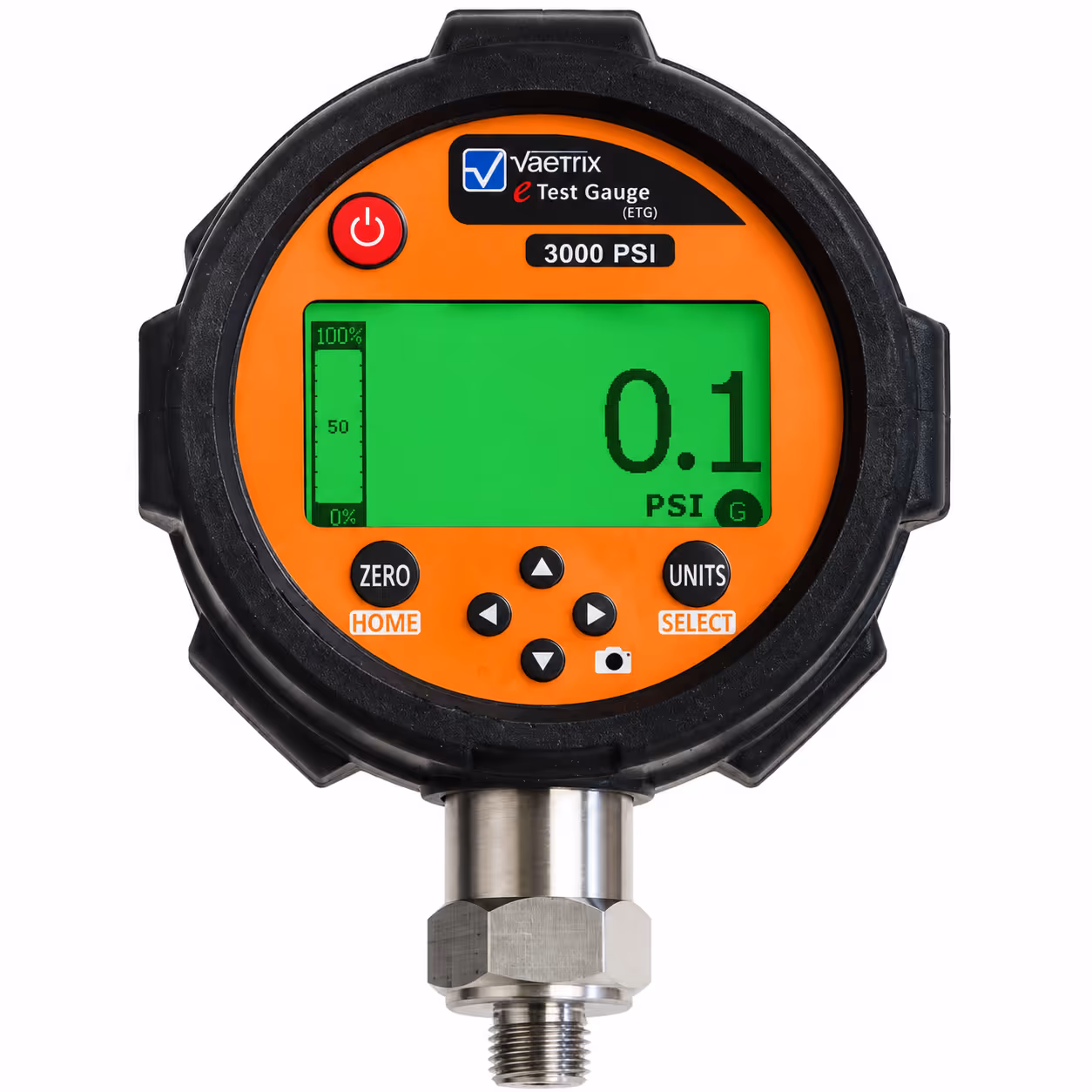

ETG Digital Process Gauge
Choose your options to build your gauge. Add -BT Bluetooth to monitor pressure on your phone/tablet, track pressure trends, or run leak tests.
In stock
ETG Calibration Gauge
Choose your options and build the gauge for your application. Now with the ability to measure temperature. Add the Hydro Management Software to create full blown tests for ASME B31.3 and replace several analog gauges.
In stock
Vaetrix PC Live Software
See live data and graphs from any ETG or HTG product via USB. Add the Rover USB extender and get up to 275 feet! Create full blown hydrostatic test reports with cover pages, notes, sign-off page, alarms, and much more.
In stock
