Hydro Test Gauge (HTG)
SKU:
Key specs
- Accuracy
- Pressure: ±0.05% Full Scale over -10°C to 50°C (14°F to 122°F)
- Weight
- 4 lb / 1.81 kg
About this item

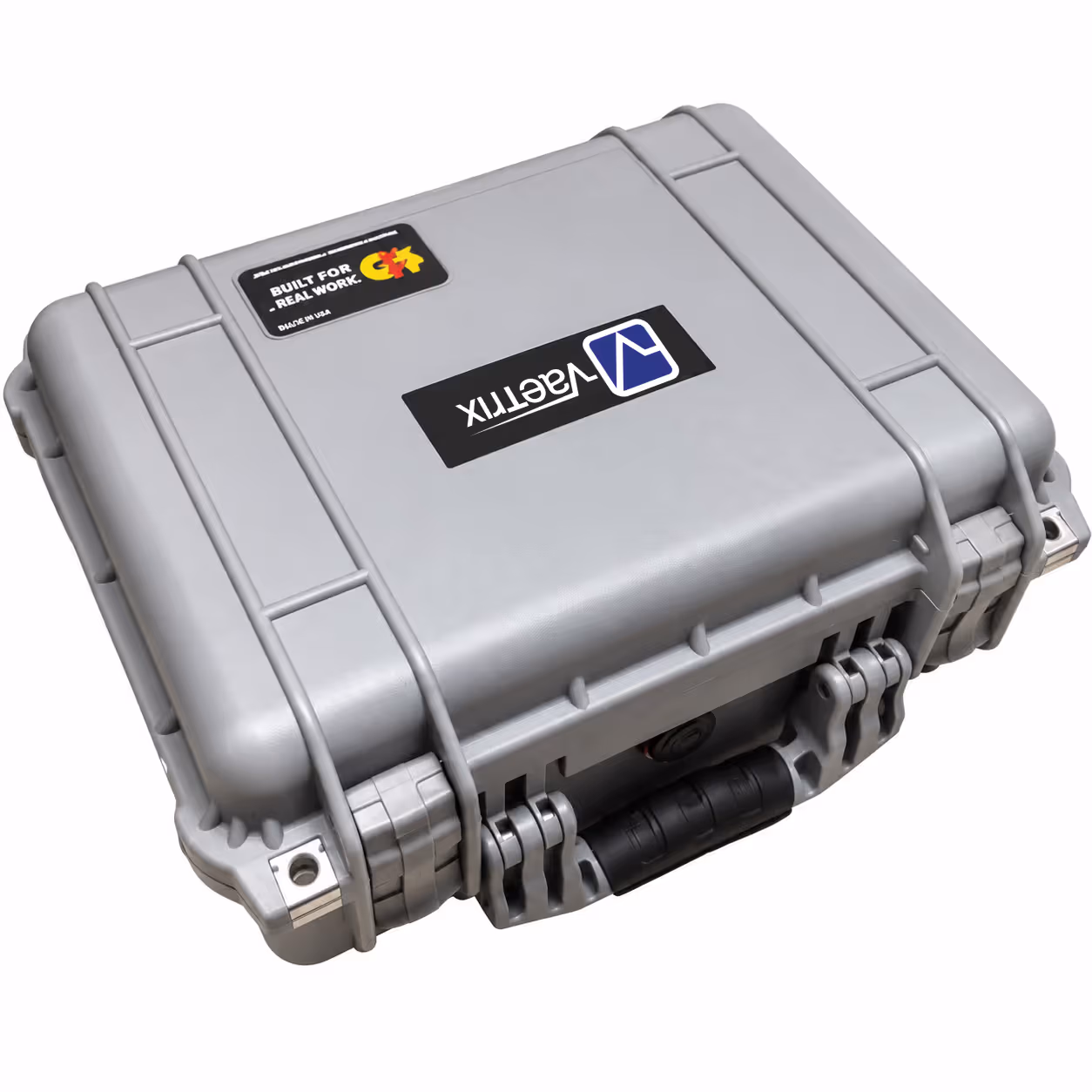

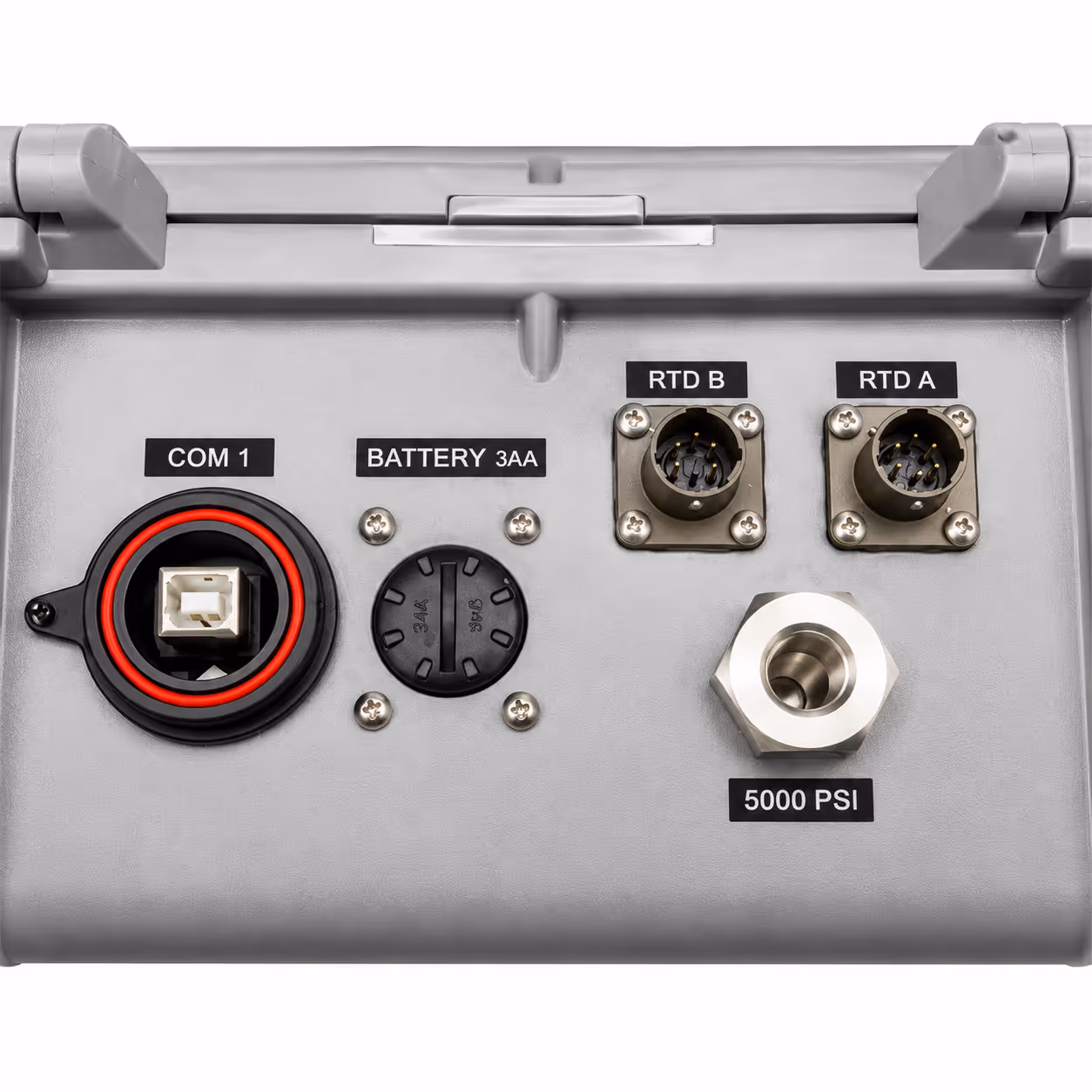

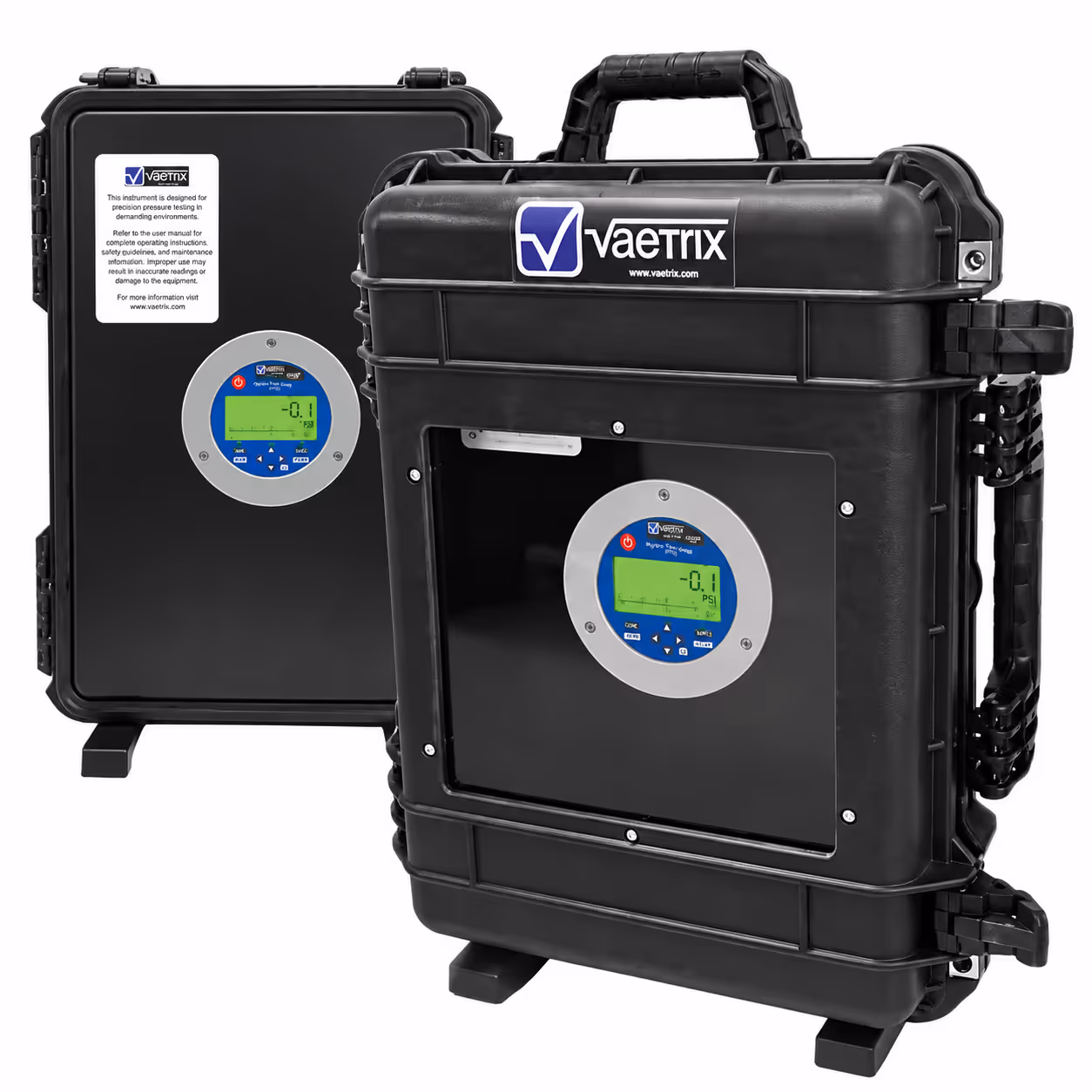

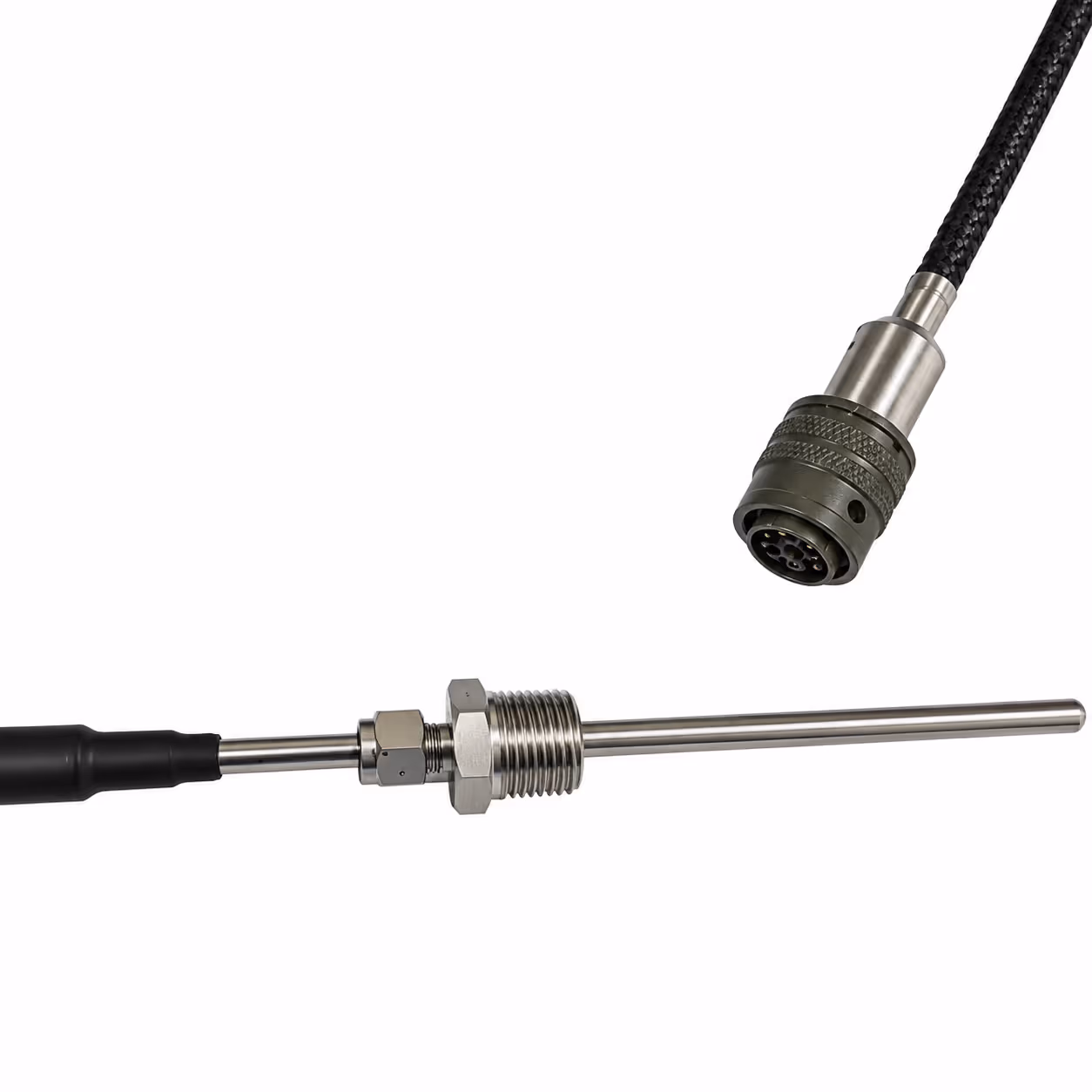

RTD Pricing and Options OBSOLETE - SEE DCR2 Choose your options and build the gauge for your application. For extreme conditions, select the "X" model housed in a Pelican 1450 case for an IP67 rating. If you prefer a chart recorder style setup in a Pelican 1520 with window select the DCR. Add (1) RTD and ambient temperature or (2) RTD's to meet your testing requirements. The RTD's are sold separately. Select Bluetooth for monitoring pressure using the free Vaetrix apps on Google Play or the Apple Store. The Hydro Management Software is included with every gauge. This lets you create full blown professional reports from the gauge and other equipment with the ability to add .pdf files. The Vaetrix HTG is specifically designed for Hydrostatic and Pneumatic pressure testing. The menu interface and easy setup for datalogging makes it ideal for most users. Choose the RTD length(s) required for the application and you are set to go. Everything else is included at no charge (batteries, software, USB cable, carrying case, NIST Cert and Data). Of course, we are backing it with our 4 Year Warranty as well. Proudly developed and built in the USA based on customer feedback. You talk, we listen!
Warranty
Backed with a 4 year warranty and unlimited customer support. We fully support our products right here in the USA. If you have any application or technical questions give us a call.
Specifications
Identity
- SKU
- VTX-HTG
- Product line
- HTG
Measurement
- Accuracy
- Pressure: ±0.05% Full Scale over -10°C to 50°C (14°F to 122°F)
- Ambient temperature accuracy
- Temperature: ±1°F / 0.6°C over operating range
- RTD temperature accuracy
- RTD Temperature: ±0.9°F / 0.5°C over operating range
Physical
- Weight
- 4 lb / 1.81 kg
Compliance
- Calibration certificate
- Included
You may also need

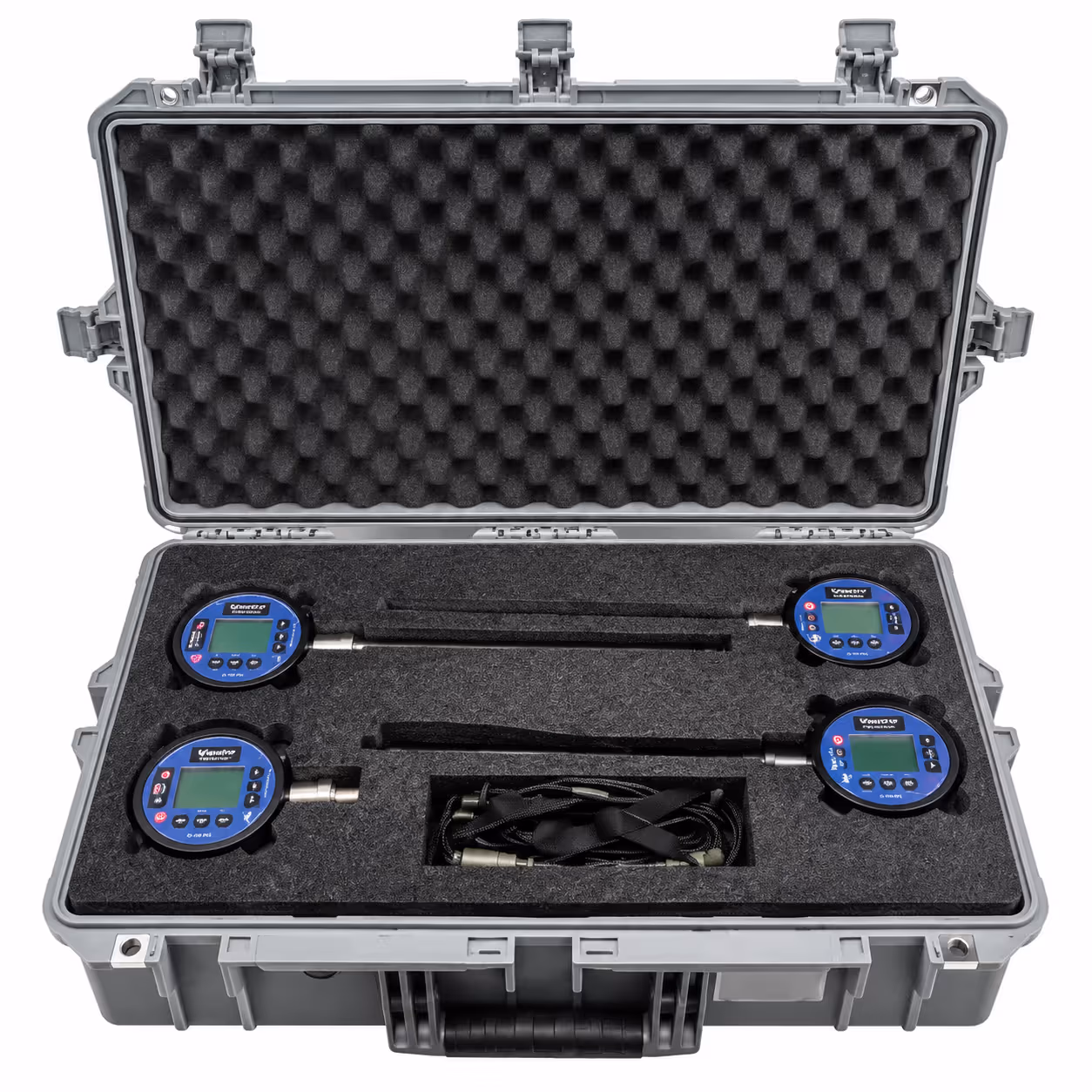

HTGK Kit Case Assembly
Pelican Air 1605 Case with custom foam insert for your ETG gauges and HTP temperature probes. This lightweight, yet rugged case keeps everything together for those Hydro testing applications in remote applications.
In stock

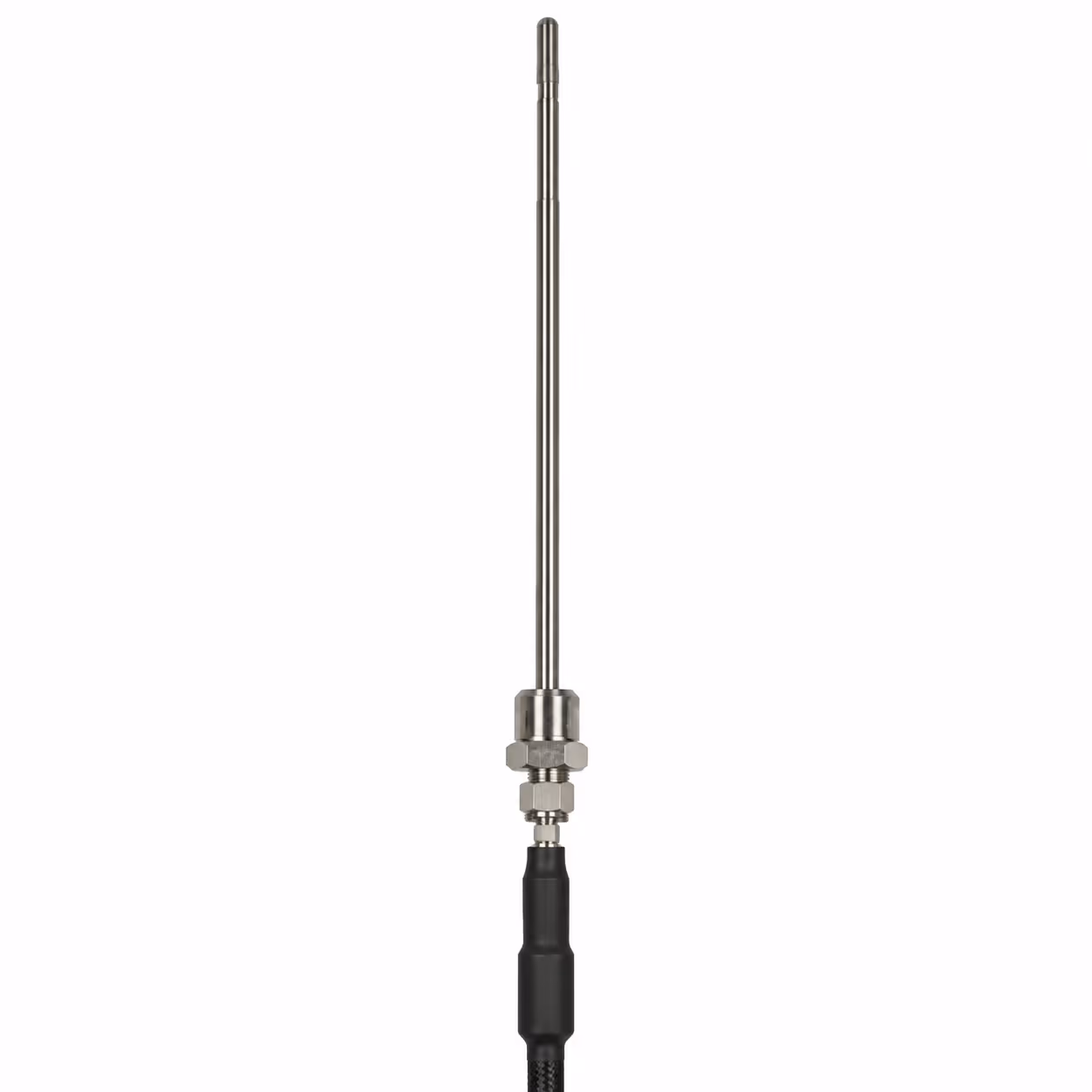

RTD Probe
4-Wire Platinum RTD Probe with Amphenol Connector. PVC jacked cable (1/4" O.D.) with armor shield to prevent damage from pinching or being ran over in the field. Probe itself is 12" in length and 0.25" in diameter.
In stock

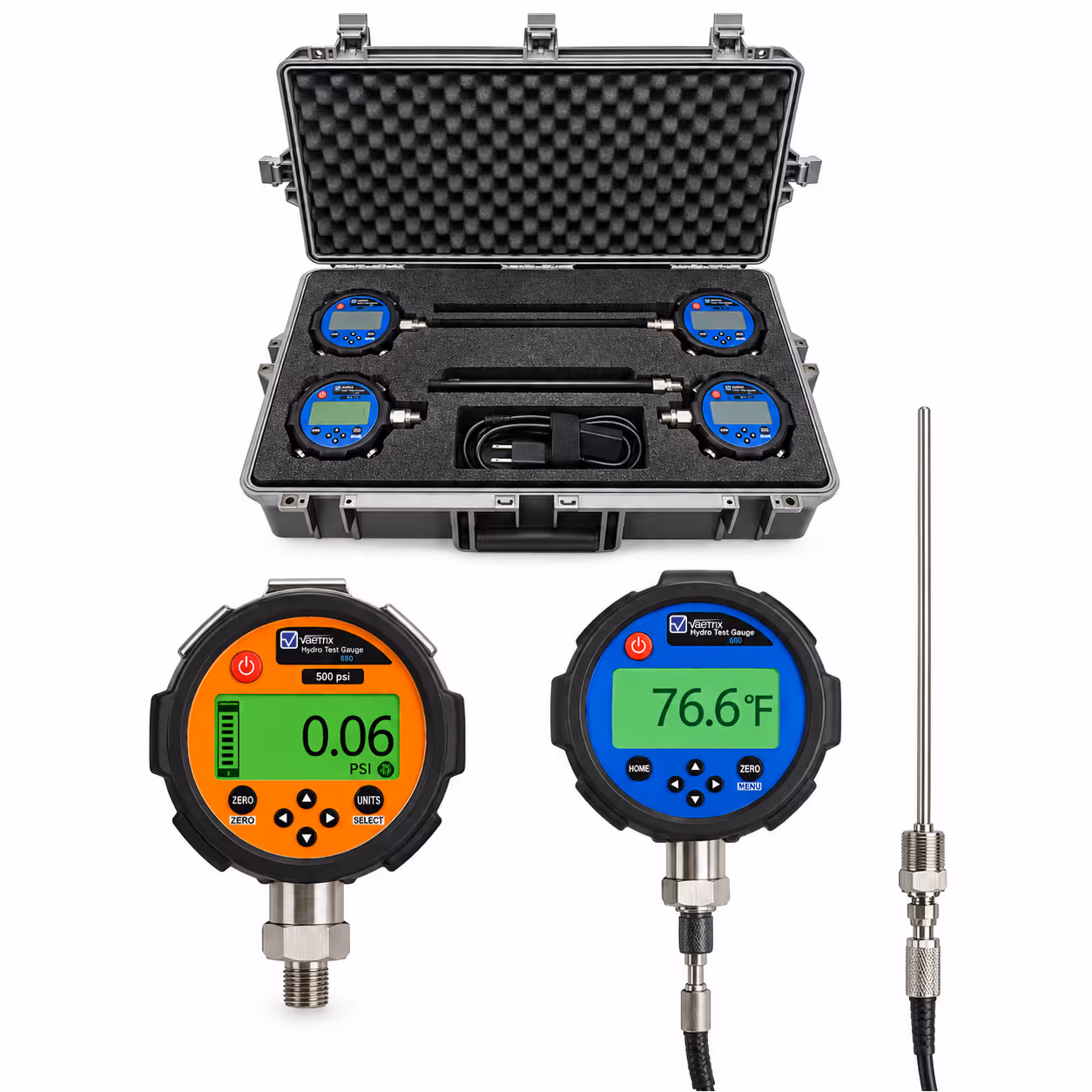

HTGP Hydro Test Kit
